Databricks Serverless & NCC

Purpose

An evolving hands-on guide for understanding Azure Databricks Serverless, Network Connectivity Configuration (NCC), and private connectivity to Azure SQL Server. Each lab step includes configuration, reasoning, screenshots, and validation tests.

Current Lab Progress

1. Create an Azure Databricks Serverless workspace.
2. Create a SQL Server connection using OAuth U2M: Custom-managed.
3. Complete Microsoft Entra browser authorization and confirm Successfully authorized.
4. Verify source tables are visible through the Databricks Catalog.
5. Attach the workspace to NCC-Restrict.
6. Add a private endpoint rule for the Azure SQL Server using subresource sqlServer.
7. Approve the private endpoint connection on the Azure SQL Server.
8. Verify the NCC rule reaches ESTABLISHED.
9. Validate DNS resolves to a private IP.
10. Validate TCP connectivity to port 1433.

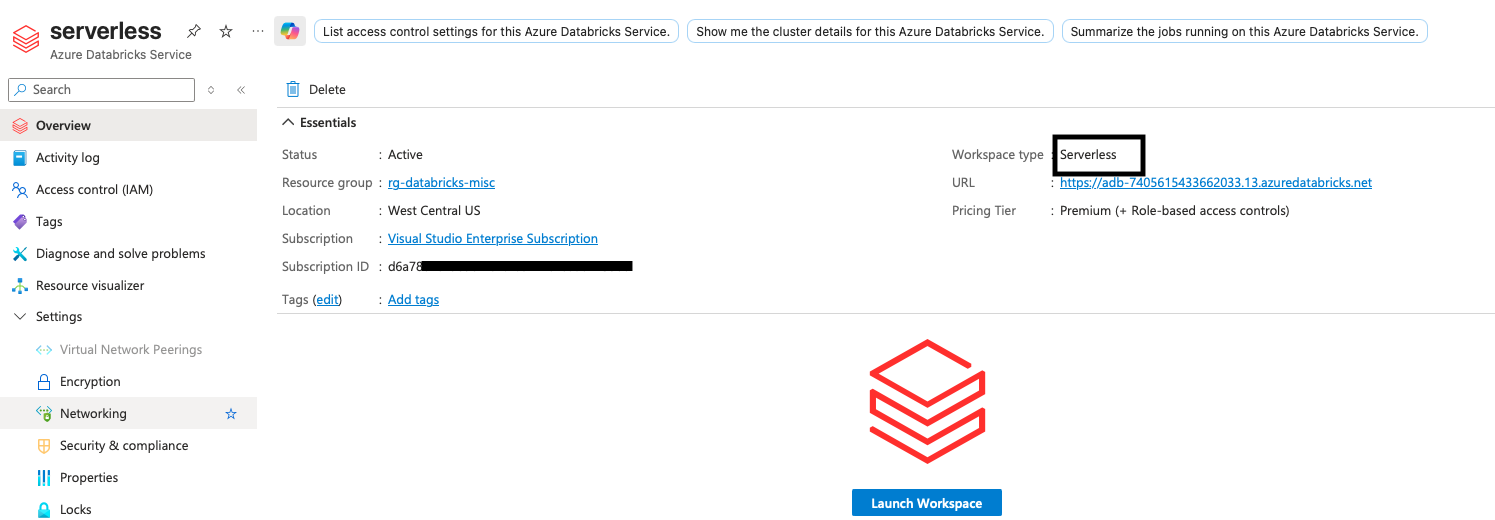

Step 1 — Azure Databricks Serverless Workspace

Create the Azure Databricks workspace as a Serverless workspace. Serverless compute is enabled and becomes the compute plane used for the connection and NCC tests.

Lab note: NCC provides a controlled path for supported private outbound connectivity from Serverless compute.

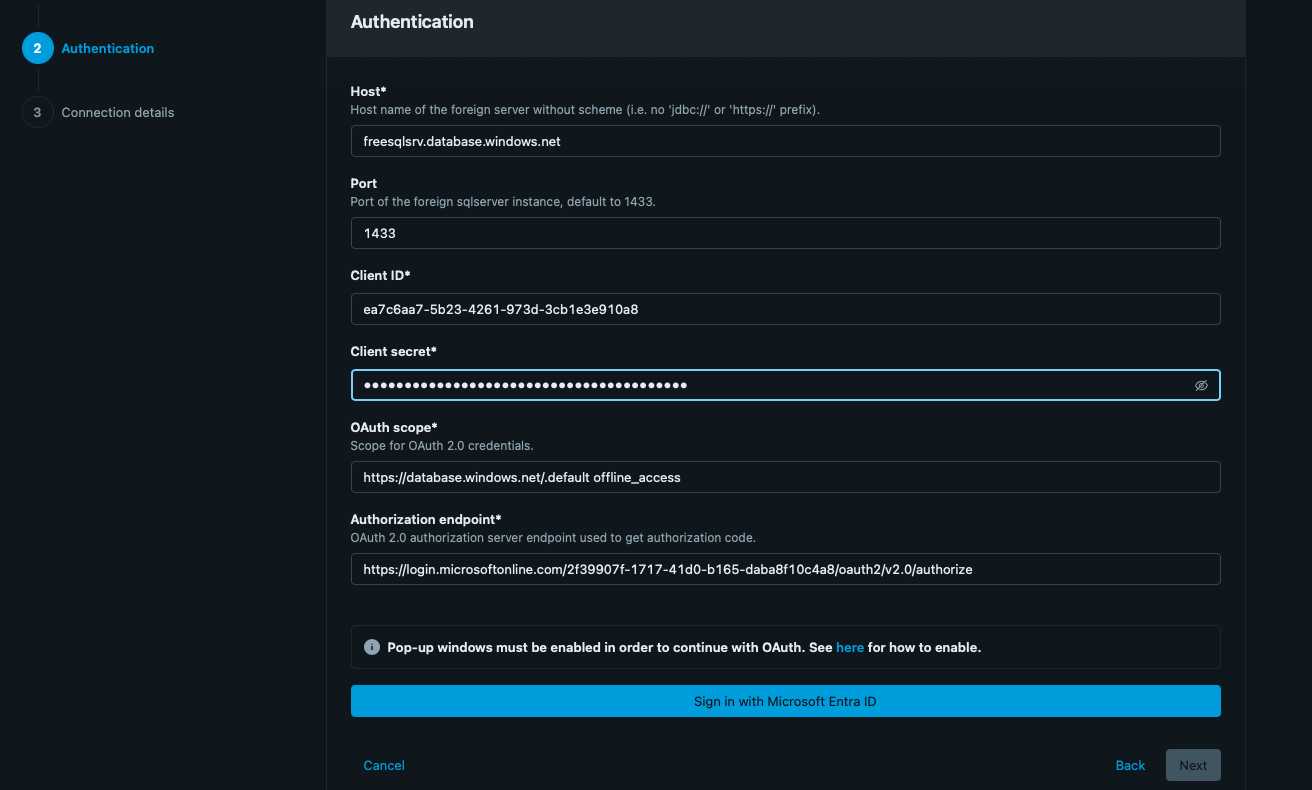

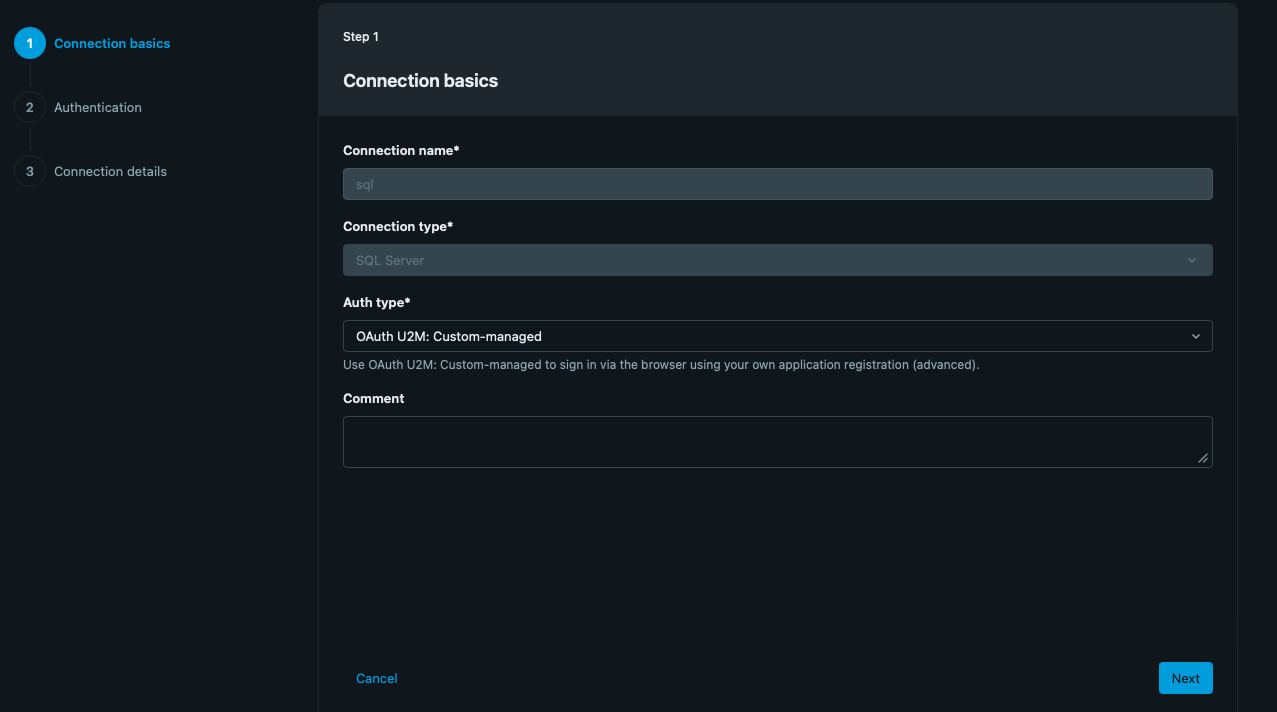

Step 2 — SQL Server Connection

Create a Databricks connection with:

• Connection type: SQL Server
• Authentication: OAuth U2M: Custom-managed
• Port: 1433
• Client ID / Secret: Microsoft Entra application registration credentials
• OAuth scope: https://database.windows.net//.default offline_access

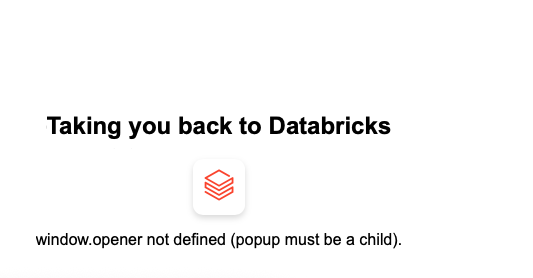

Browser Authorization

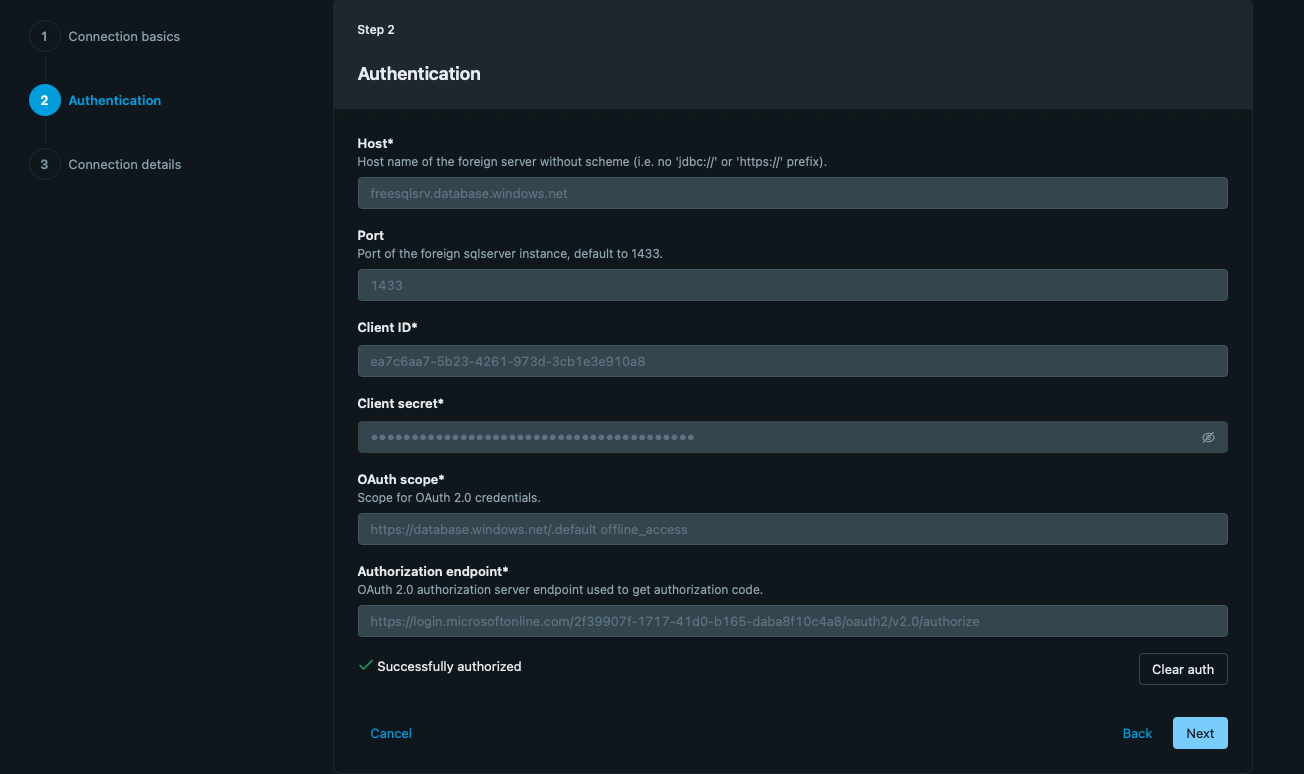

Click Sign in with Microsoft Entra ID. The lab encountered a popup/window.opener issue initially. After completing browser authorization, Databricks displayed Successfully authorized.

Catalog Validation

After authorization, the connection can be used from the Databricks Catalog. The source objects/tables are listed, demonstrating successful metadata discovery through the connection.

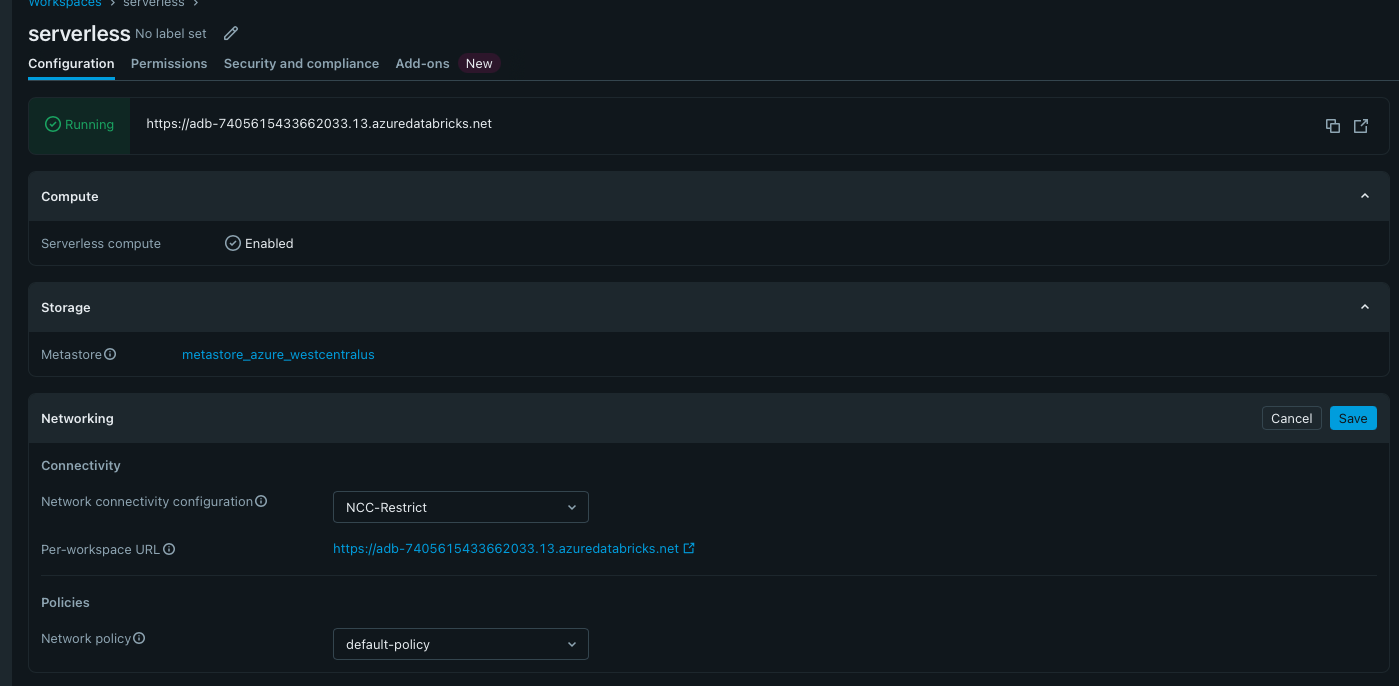

NCC Configuration

The workspace Networking section shows NCC-Restrict as the Network Connectivity Configuration. The NCC is used to manage private endpoint connectivity from Serverless compute to supported Azure resources.

Add Private Endpoint Rule

In the NCC, select Add private endpoint rule and provide:

• Azure resource ID: full resource ID of the destination.
• Azure subresource type: sqlServer.

Select Add to create the private endpoint request.

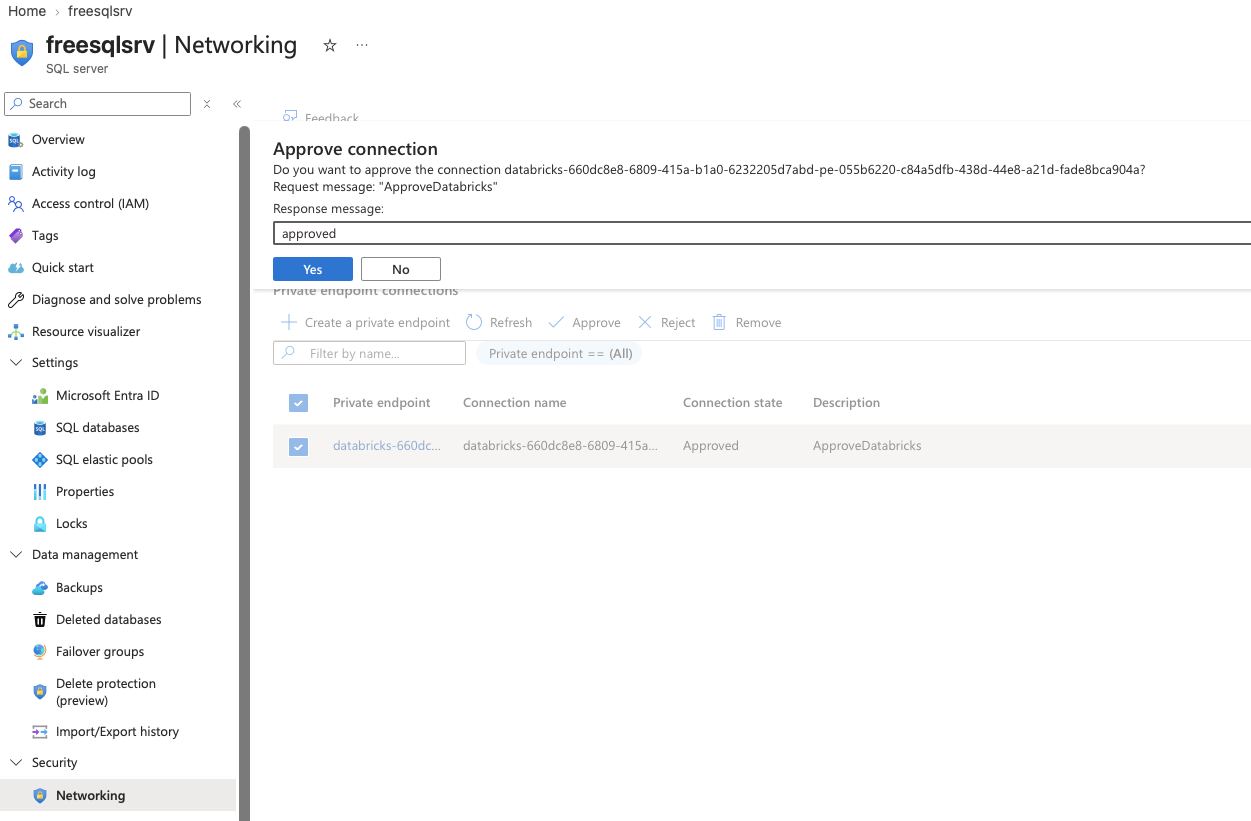

Approve the Private Endpoint

On the Azure SQL Server resource, open Networking → Private endpoint connections. Select the Databricks request and choose Approve. In this lab the Azure-side connection became Approved.

Verify NCC — ESTABLISHED

Return to Databricks Account → Security → Network connectivity configuration → NCC-Restrict → Private endpoint rules and refresh until the connection status becomes ESTABLISHED.

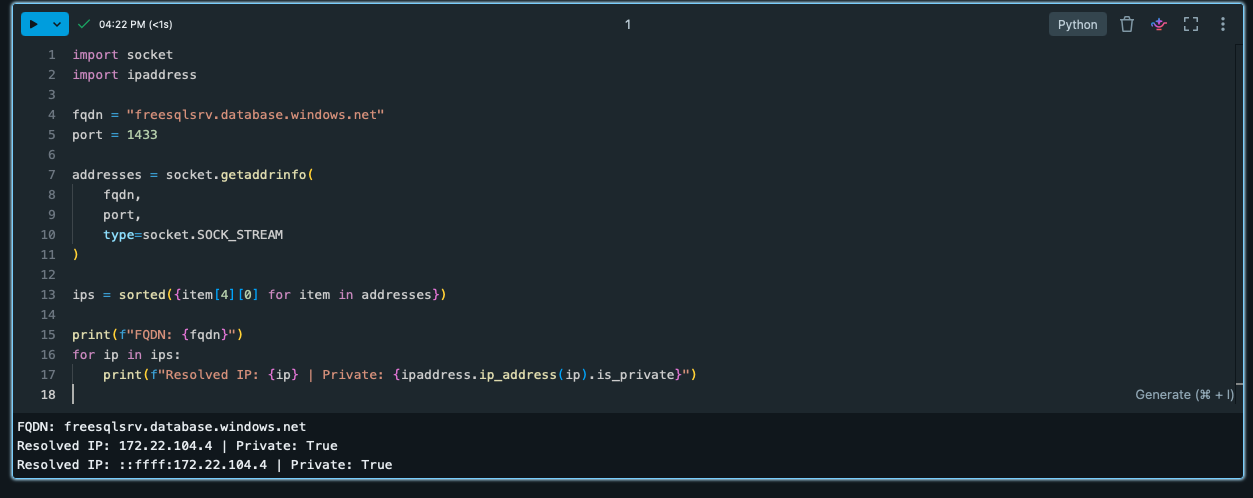

Connectivity Test #1 — DNS

Run this in a Databricks Serverless notebook:

import socket
import ipaddress

fqdn = "sqlserver.database.windows.net"
port = 1433

addresses = socket.getaddrinfo(
    fqdn,
    port,
    type=socket.SOCK_STREAM
)

ips = sorted({item[4][0] for item in addresses})

print(f"FQDN: {fqdn}")

for ip in ips:
    print(f"Resolved IP: {ip} | Private: {ipaddress.ip_address(ip).is_private}")

Observed: | Private: True.

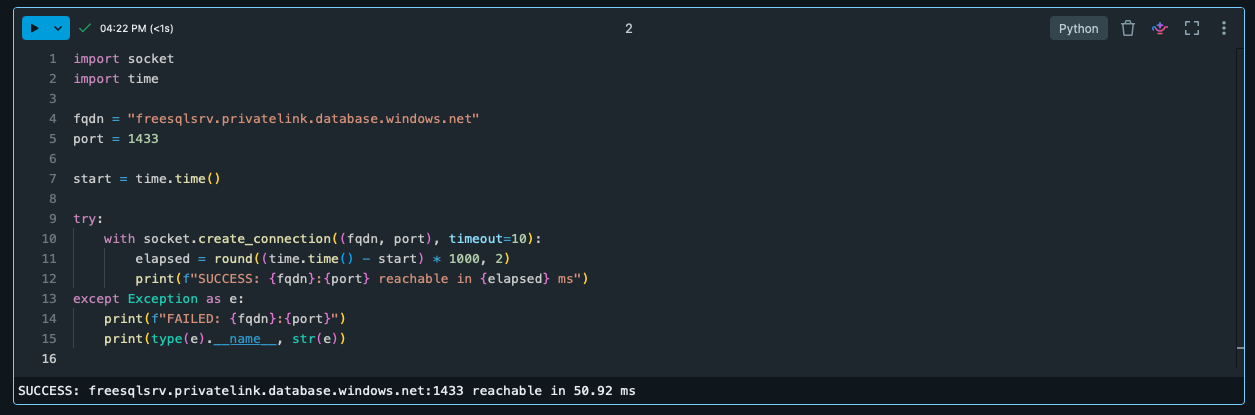

Connectivity Test #2 — TCP 1433

Test the Private Link hostname on TCP port 1433:

import socket
import time

fqdn = "sqlserver.privatelink.database.windows.net"
port = 1433

start = time.time()

try:
    with socket.create_connection((fqdn, port), timeout=10):
        elapsed = round((time.time() - start) * 1000, 2)
        print(f"SUCCESS: {fqdn}:{port} reachable in {elapsed} ms")
except Exception as e:
    print(f"FAILED: {fqdn}:{port}")
    print(type(e).__name__, str(e))

Observed: SUCCESS: sqlserver.privatelink.database.windows.net:1433 reachable in .

End-to-End NCC Flow

What Each Test Proves

Key Learning Points

• OAuth authorization validates the identity/authentication path.
• NCC controls the private connectivity configuration used by Serverless.
• The private endpoint rule identifies the Azure resource and service subresource.
• The Azure resource owner must approve the private endpoint request.
• ESTABLISHED confirms the NCC private endpoint lifecycle has completed.
• DNS validation confirms name resolution to a private address.
• TCP 1433 validation confirms network reachability to SQL Server.
• Catalog validation confirms the application-level connection can discover source tables.

Next Topics

• NCC account-level and regional design.
• Multiple workspaces sharing an NCC.
• Private endpoint rules for other supported Azure services.
• DNS and Private Link DNS behavior.
• Firewall and network security requirements.
• Troubleshooting PENDING vs ESTABLISHED.
• Serverless restart requirements after NCC changes.
• Serverless NCC vs classic VNet-injected Databricks networking.
