September 25, 2026 · Azure · Databricks · Networking

Connecting Databricks Serverless to On-Premises SQL Server

This walkthrough follows the supplied implementation guide from Azure Private Link Service creation through Direct Connect, Databricks Network Connectivity Configuration (NCC), and Unity Catalog validation of an on-premises SQL Server.

Architecture showing Databricks Serverless NCC connecting through Private Link Service Direct Connect, a customer VNet, and VPN or ExpressRoute to an on-premises SQL Server

The private route: Serverless compute to NCC, Private Link Service Direct Connect, customer network, then on-premises SQL.

End-to-end path

The guide builds the private route first, then configures data access through Unity Catalog:

Databricks Serverless → NCC → Private endpoint rule
  → Azure Private Link Service Direct Connect
  → Customer VNet → VPN or ExpressRoute
  → On-premises SQL Server
  → Unity Catalog connection → Foreign catalog

Before you start

Confirm the customer VNet can route to the on-premises SQL Server destination.
Identify the destination's private IP, SQL Server DNS name, port, and database.
Confirm firewall policy allows the intended database traffic.
Have permission to create the Azure Private Link Service and configure Databricks account networking and Unity Catalog.

1. Create the Azure Private Link Service

Create the Private Link Service in the customer subscription and VNet that can reach the on-premises destination. Select the resource group, name, and region for your environment. The screenshot shows the basic creation settings.

Azure portal Private Link Service creation form showing subscription, resource group, service name, and region

Private Link Service creation: choose the customer subscription, resource group, name, and region.

2. Configure Direct Connect

Choose the destination IP address connection method, specify the privately routable SQL Server destination, and select the source NAT VNet and subnet. Configure private IP allocation for the service according to the customer network design.

Private Link Service outbound settings for destination IP, source NAT VNet, subnet, and private IP allocation

Direct Connect outbound settings: destination IP, source NAT network, subnet, and private IP allocation.

3. Configure Databricks account networking

In the Databricks account console, open Security → Networking → Network connectivity configurations. Create or select the NCC for the Serverless region, then associate the Databricks workspace with it. The screenshot shows the account-level configuration list.

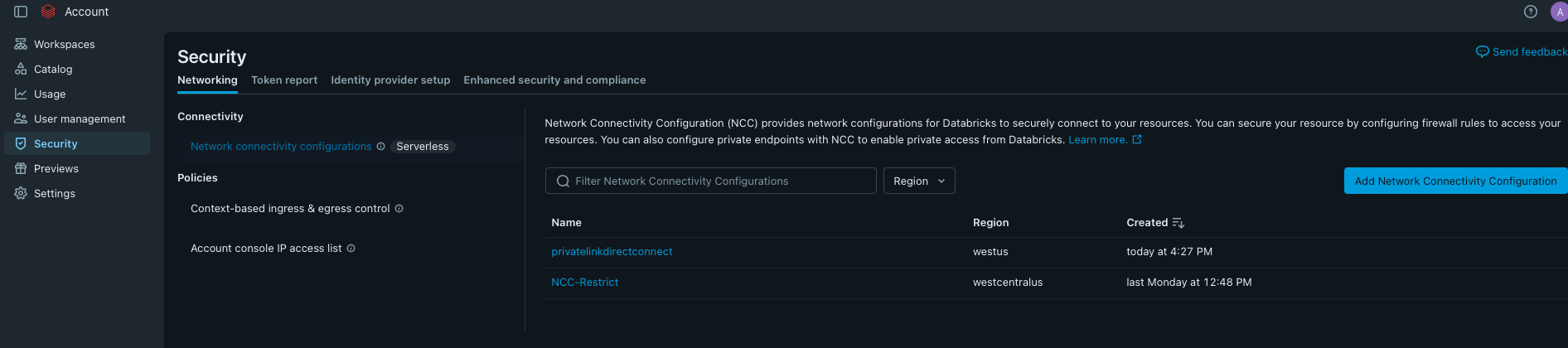

Databricks account Security networking page listing Network Connectivity Configurations

Databricks account console: Network Connectivity Configurations for Serverless.

4. Add the Private Link Service rule

In the NCC, add a private endpoint rule that targets the Private Link Service resource ID. Supply the SQL Server domain name that the Unity Catalog connection will use. To locate the target resource ID, open the Private Link Service resource details in Azure.

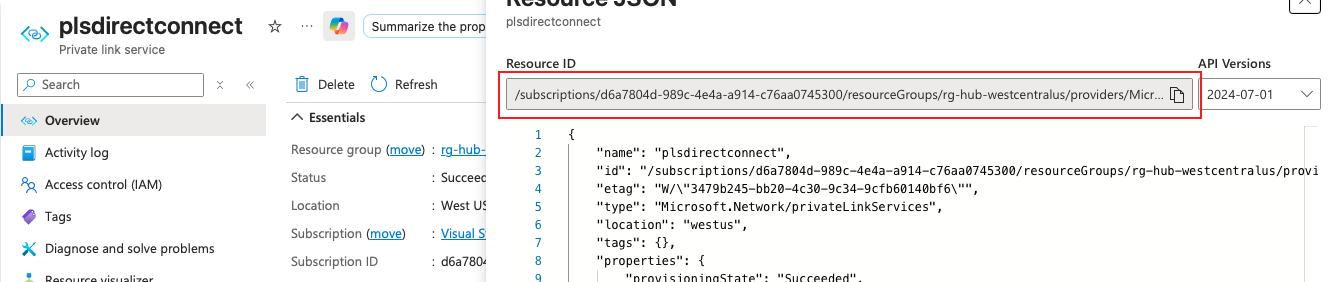

Azure Private Link Service resource details showing the service name and resource ID

Locate the Private Link Service resource ID for the NCC rule.

5. Approve and verify the private endpoint

On the customer Azure side, open the Private Link Service's private endpoint connections and approve the pending Databricks request. Return to the NCC and refresh the rule until its connection status is ESTABLISHED. Approval completes the endpoint handshake; it does not validate SQL credentials or database permissions.

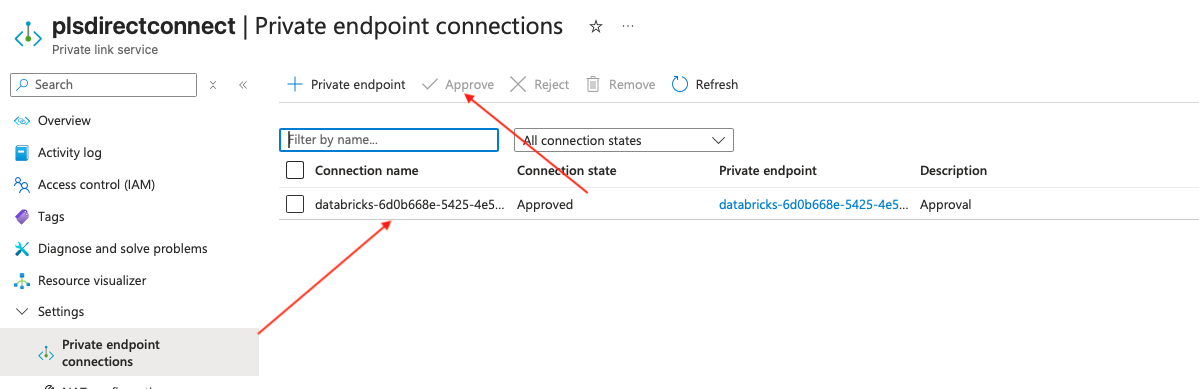

Azure Private Link Service private endpoint connections page showing the approval workflow and approved connection

Azure Private Link Service: approve the pending private endpoint connection.

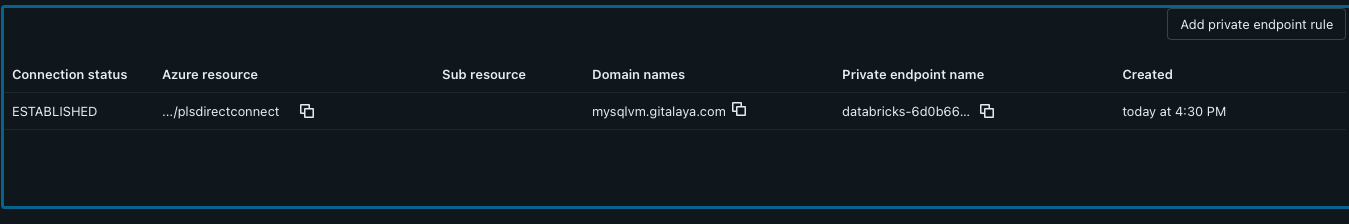

Databricks NCC private endpoint rule showing ESTABLISHED

Databricks NCC: confirm the private endpoint rule reaches ESTABLISHED.

6. Create the Unity Catalog SQL Server connection

Create a Unity Catalog connection of type SQLSERVER. Set the SQL Server host name, port, user, and password, and apply the certificate-trust option only if it matches your organization's security requirements. The example uses port 1433; replace the host and credentials with approved values and store secrets securely.

Databricks SQL cell defining a SQL Server Unity Catalog connection with host, port, user, password reference, and certificate option

Unity Catalog SQL Server connection definition.

7. Create the foreign catalog

Create a foreign catalog using the SQL Server connection and specify the remote database. The guide uses a SQL statement in this form:

CREATE FOREIGN CATALOG <catalog_name>
USING CONNECTION <connection_name>
OPTIONS (
  database '<database_name>'
);

Databricks SQL statement creating a foreign catalog from a SQL Server connection

Create the foreign catalog from the SQL Server connection.

8. Validate the foreign catalog in Catalog Explorer

Open Catalog Explorer and verify that the foreign catalog, remote schema, and tables are visible. The supplied screenshots show a remote customer table and its metadata.

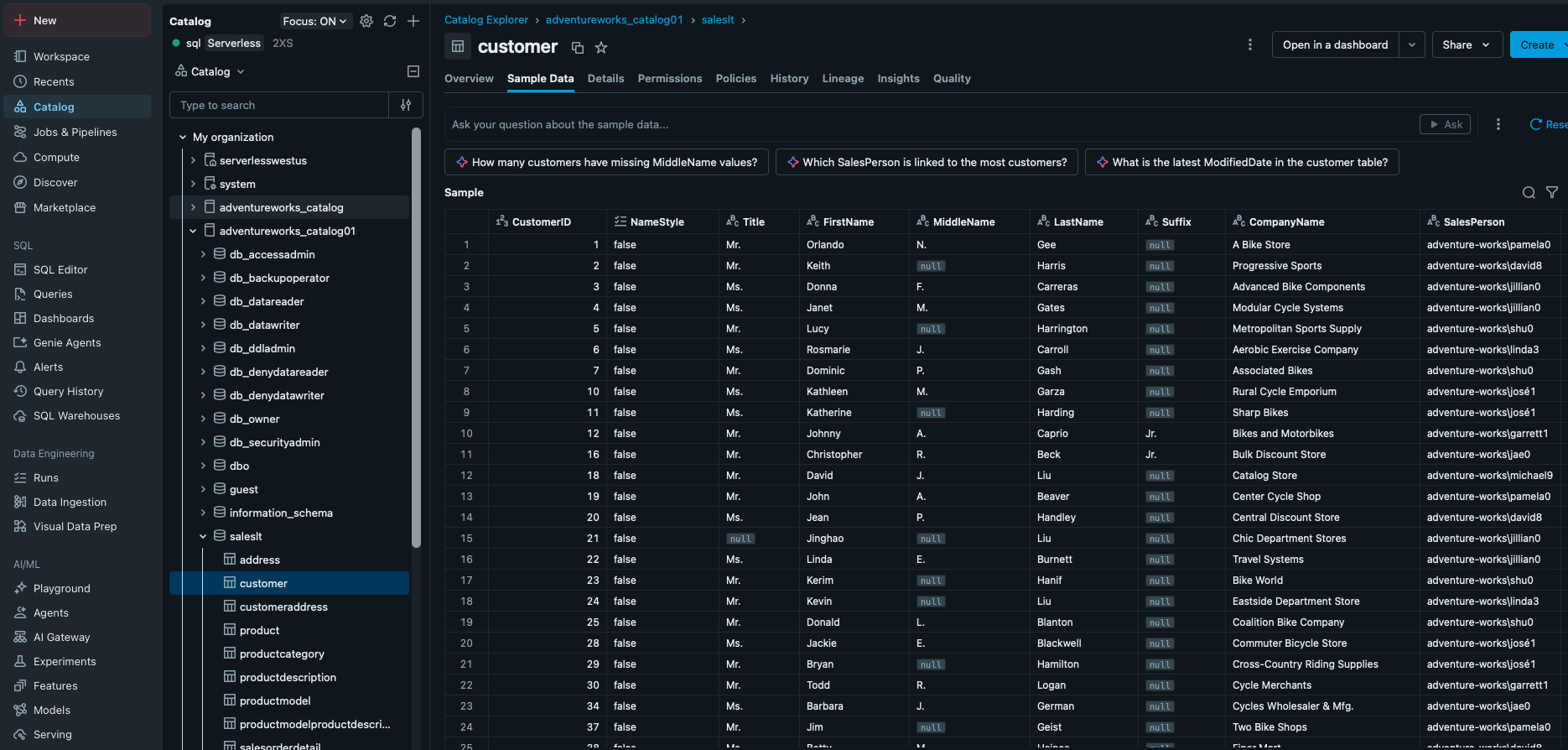

Databricks Catalog Explorer showing a foreign catalog and sample rows from a remote customer table

Catalog Explorer: browse a table exposed through the foreign catalog.

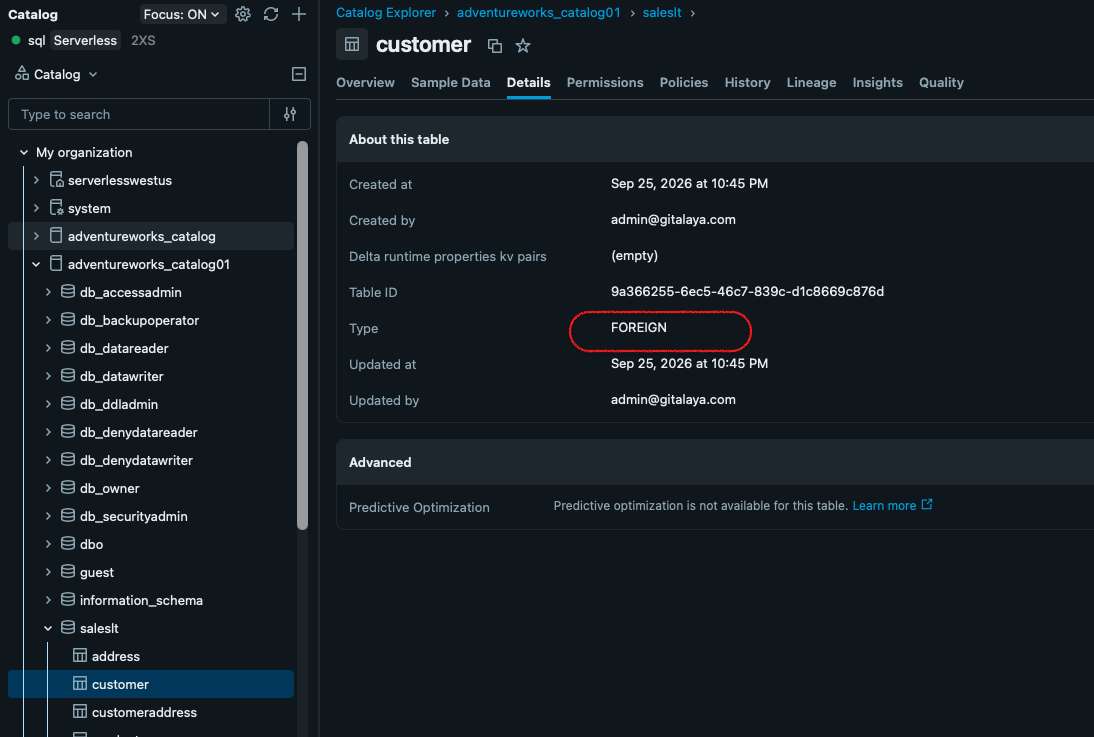

Databricks Catalog Explorer table details showing the foreign table type

Table details confirm the selected object is a foreign table.

Validation boundaries

Private endpoint status: Azure approval and NCC ESTABLISHED confirm the private endpoint lifecycle.
Unity Catalog connection: Confirms the SQL Server connection configuration and authentication work.
Foreign catalog: Catalog Explorer visibility confirms the remote database objects are exposed to the intended identity.

The screenshots show values from the demonstrated Azure and Databricks environment. Use the resource IDs, network addresses, hostnames, and credentials appropriate to your own deployment.
